PreVent-It Soffit Vents 4 Inch - Only Design that Prevents Moist Air from Re-entering Home, Under Eave Exterior Vents for Bathroom Exhaust Fan, Screws Included, White, 1-Pack

PreVent-It Soffit Vents 4 Inch - Only Design that Prevents Moist Air from Re-entering Home, Under Eave Exterior Vents for Bathroom Exhaust Fan, Screws Included, White, 1-Pack

$45.90 USD
$45.90 USD
Sale Ausverkauft

  • Patented design and only soffit vent built to direct moist bathroom air away from the soffit, not under it. This prevents several issues, including water and roof damage, increased moisture resulting in higher heating and air conditioning costs, and indoor air quality issues that can impact health.
  • Scientifically proven to displace the most amount of exhausted air away from the home (95%+ of moist air). Don't put your family's wellness or the health of your home at risk by using a less effective, cheap soffit vent.
  • Damper/flap provides a closed system that prevents pests and air from entering home. The small front grill openings help increase air speed to push moisture over the soffit edge. Note: Meant for bath fans up to 110 CFM. Higher CFM fans may experience louder fan noise and restricted air flow.

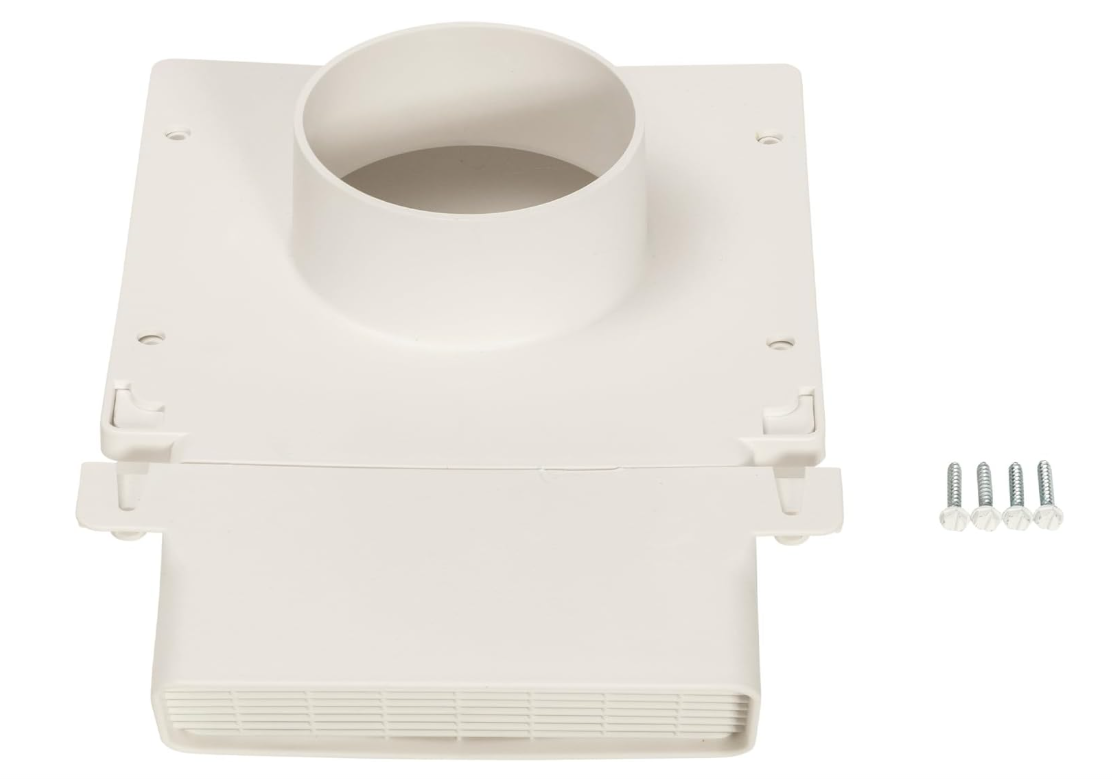

  • Easy to install; easy to clean via removable screen; fits a 4-inch vent hose (4 screws included).
  • Durable resin plastic that's weather resistant; Made in the USA.

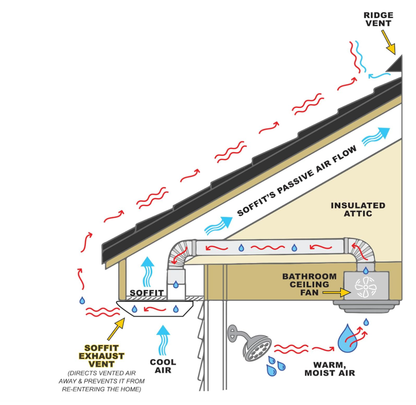

How Our Soffit Vent Works

Illustration showing how our under-eave soffit vent directs vented air away from the home

IMPORTANT: Our soffit vent is designed for use with bathroom exhaust fans only. Installing a sister joint or cross brace is recommended to prevent the soffit from sagging. For best performance, use a bath fan between 50-80 CFM and install the vent exist at the outermost edge of the soffit if possible. You should also minimize or eliminate the use of flex duct since that restricts air flow and causes louder fan noise.

Soffit Vent Specifications

Usage Bathroom exhaust fan only (up to 110 CFM)
Size/Fit Meant for 4" vent hose
Dimensions 11.25"L x 7.85"W x 3.75"H
Hardware 4 screws (#8-15 x 1") included; for flex duct installation we recommend using a zip tie (not included); for hard duct installation you'll need to seal connection with tape or caulk (not included)
Weather Resistance UV-Protected, Water & Frost Resistant
Colors White, Black, Brown
Material Resin plastic
Cleaning Easy to clean via removable screen
Damper Includes built-in damper/flap; closed system prevents pests & air entering duct
Manufactured United States

How to Install the PreVent-It 4" Bathroom Soffit Vent

Step 1

Measure a 4.5 inch diameter minimum cut where you will install the soffit vent.

Measure a 4.5 inch diameter minimum cut to place soffit vent

Step 2

Pull transition flex duct through opening and attach to top of soffit vent using a zip tie (not provided). For hard duct installation, pull transition duct through opening, attach duct and soffit vent, seal connection with tape or caulk (not provided).

Illustration showing installation to flex duct using a zip tie

Step 3

Push attached duct and soffit vent into hole. Attach to soffit using four (4) provided screws.

NOTE: You will see 6 screw holes; you do not need to put screws in the 2 holes nearest the screen.

Illustration showing attaching the vent to the soffit using the four provided screws
